- Customized support:
-
OEM, ODM
- Place of Origin:
-
Shanxi, China
- Brand Name:
-
SOLID
- Model Number:
-
Loose flanged fitting
- Technics:
-
Forged
- Connection:
-
Flange, Flange
- Shape:
-
Equal
- Head Code:
-
Round
- Color:
-
Blue
- Type:
-
Loose Flange
- Size:
-
DN80-DN2000
- Pressure:
-
PN10/PN16/PN25/PN40
- Standard:
-
ISO2531,EN545,EN598
- Coating:
-
Fusion bonded epoxy
- Surface treatment:
-
Powder Coating/FBE
- Packing:
-
Plywood Case
- Application:
-
Water Pipe System
- CE Certified.
- Valid from 2018-06-11 until 2023-06-10
- WRAS Certified.
- Valid from 2017-04-01 until 2022-04-01
- Supply Ability:
- 100000 Ton/Tons per Month Loosing Flange Fittings
- Packaging Details
- cases,pallets or as per customers' requirements
- Port
- Tianjin,Qingdao
- Lead Time :
-
Quantity(Tons) 1 - 1 >1 Est. Time(days) 45 To be negotiated

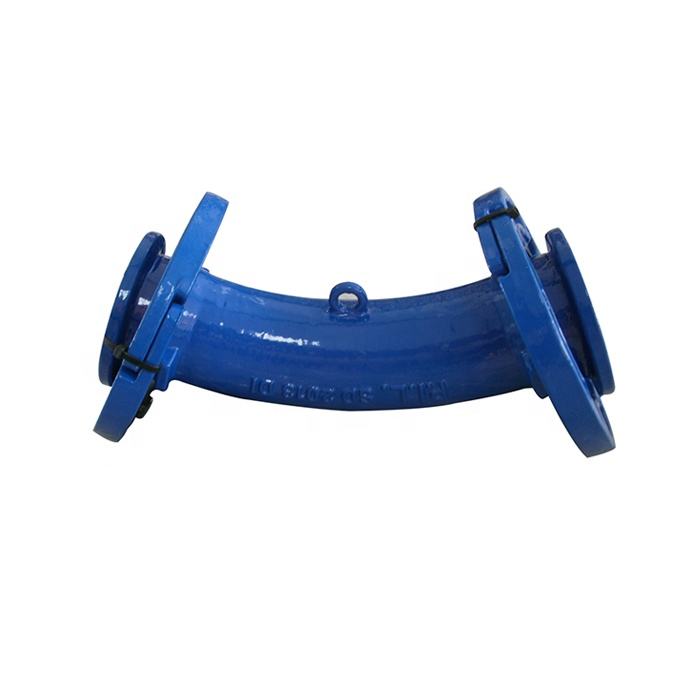

En545 Ductile Iron Pipe Fitting With Loosing Flange
We produce full range ductile iron loose flange pipe fittings
Working pressure PN10, PN16
Flange end to PN10/16,
Double Loosing Flanged Pipe

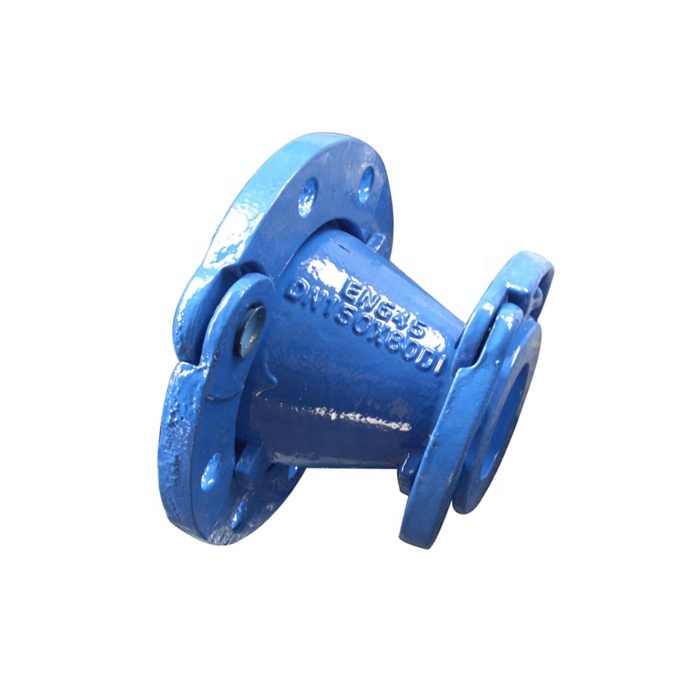

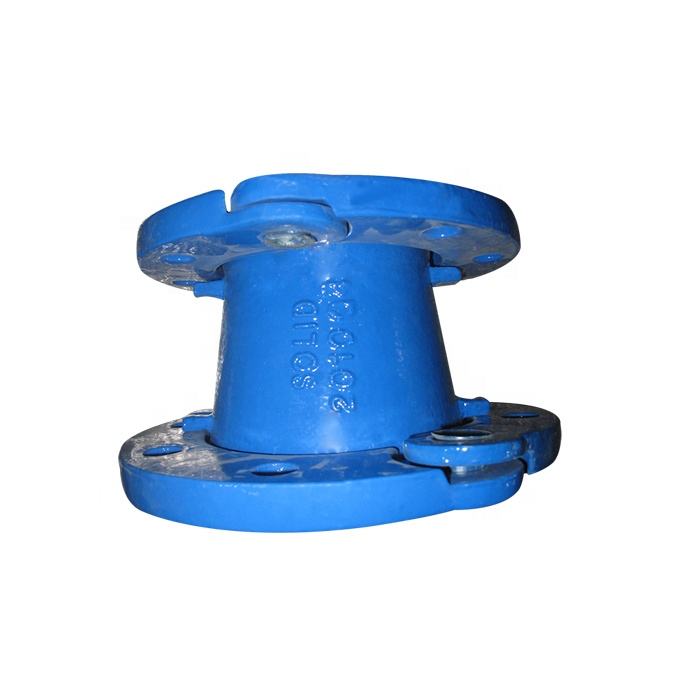

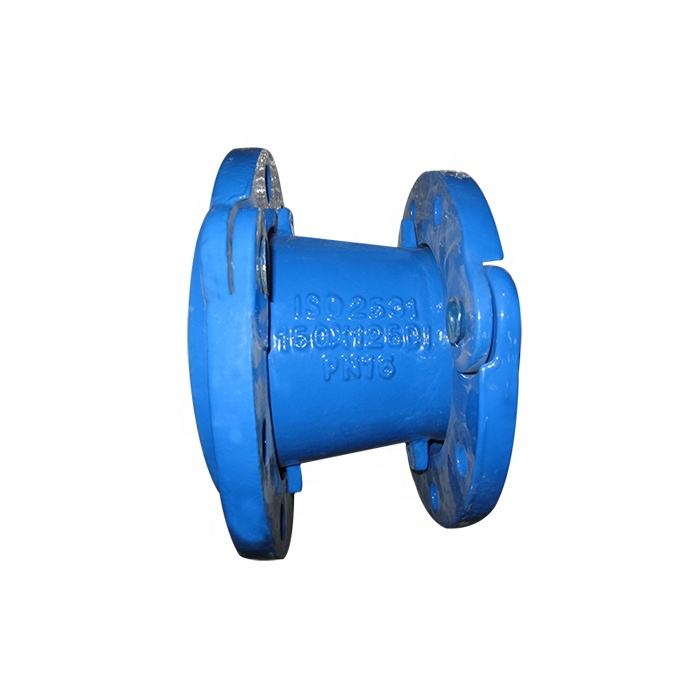

Double Loosing Flanged Taper

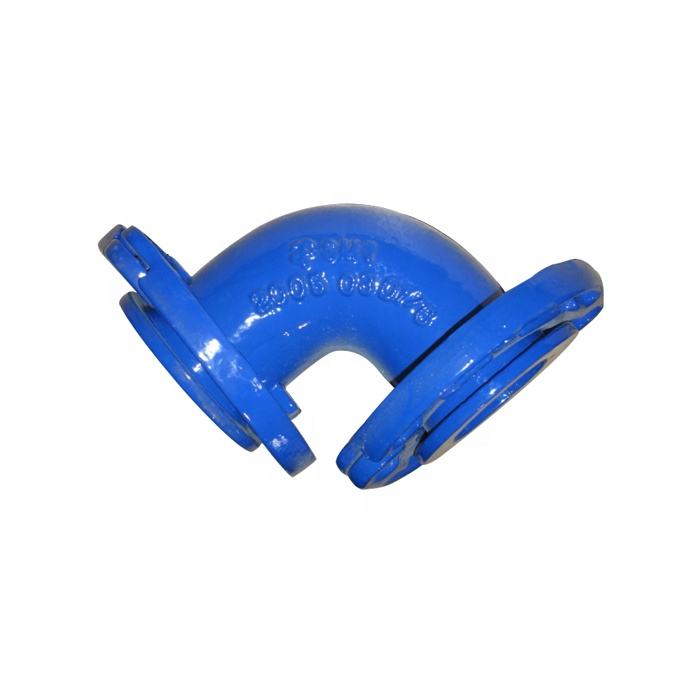

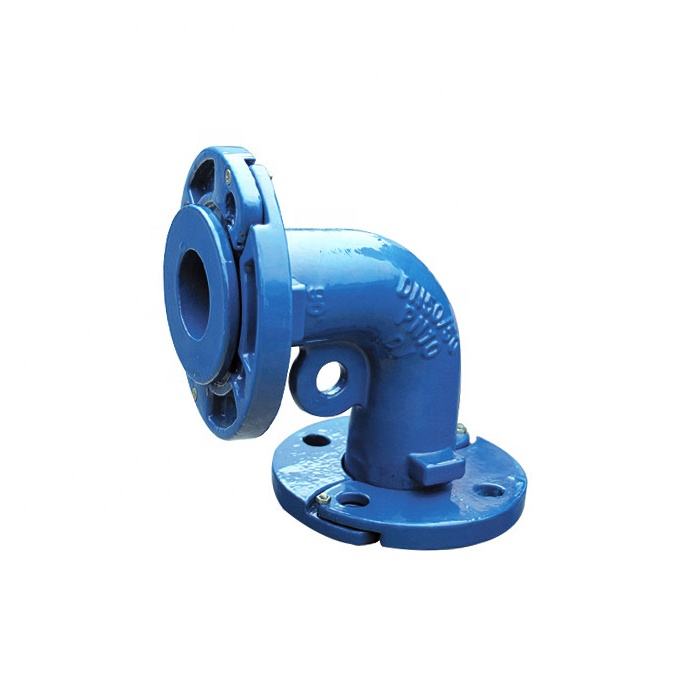

Double Loosing Flanged 90° Bend
All Loosing Flanged Tee
All Loosing Flanged Cross
Double Loosing Flanged Duckfoot Bend
Double Loosing Flanged anchoring Sleeve
Loosing Flanged Spigot
Loosing Flange Set
Pressure: PN10/PN16/PN25/PN40
Body material : Ductile iron
Coating:
a). Inside and outside with FBE ( fusion bonded epoxy) coating or Epoxy painting ;
b). Inside and outside with Epoxy painting ;
c). Inside and outside wih black bitumen.
Gaskets are SBR, NBR or EPDM;
Bolts and Nuts : Carbon steel with galvanized zinc plated G4.8/G8.8, or SS304/SS316
Package : wooden cases and protection layer .
