ZLP Aluminum alloy suspending platform
1.Description:
ZLP series suspended platform belongs to electrical-driven climbing and decorating machinery, mainly used to decorate, maintain and clean the external walls of high-level mutil-storey buildings and exterior construction such as cement coating veneer, paints, installing the glass curtain walls, painting as well as cleaning and maintainence. Also can be applied to the perating of big vessels and bridges, dams etc.
Applying this product can release scaffold free,reduce the construction cost and the efficiency will be greatly increased. Meanwhile , the production is simple flexible, easy teansfer, easy to operate, safe and reliable.
In addition to the advantages of a steel one, the aluminum alloy suspending platform has special advantages:
1)Without painting and galvanizing on surface
2) Protecting of the surface oxygen membrane on the surface can be rust-proof, anti-corrosion.
3) Light weight,65% lighter than the same model of steel one.
4) Increase in the effective load and improve the ability of anti-capsize.
5) Transporting and installing are easier and labor saving.
6) With bright silver gray color, good outlook.
Therefore, the aluminum alloy suspending platform will be more and more popular product in future.
2.Detail parameter ZLP Aluminum alloy suspending platform
| Type | ZLP1000 | ZLP800 | ZLP630 | ZLP500 | ZLP250 |
| Rated load | 1000 | 800 | 630 | 500 | 250 |
| Lifting speed | 8.3+0.5 | 8.3+0.5 | 8.3+0.5 | 8.3+0.5 | 8.3+0.5 |
| Platform Dimension | 7.5 | 7.5 | 6 | 5 | 2.5 |
| Lifting Height | 100 | 100 | 100 | 100 | 100 |
| Steel rope | 8.6 | 9.1 | 8.3 | 8.3 | 8.3 |
| Rated power | 2.2*2 | 1.8*2 | 1.5*2 | 1.1*2 | 1.1*1 |
| Voltage | 380 | 380 | 380 | 380 | 380 |
| Frequency | 50 | 50 | 50 | 50 | 50 |
| Counterweight | 25*48pcs | 25*40pcs | 25*36pcs | 25*30pcs | 25*16pcs |

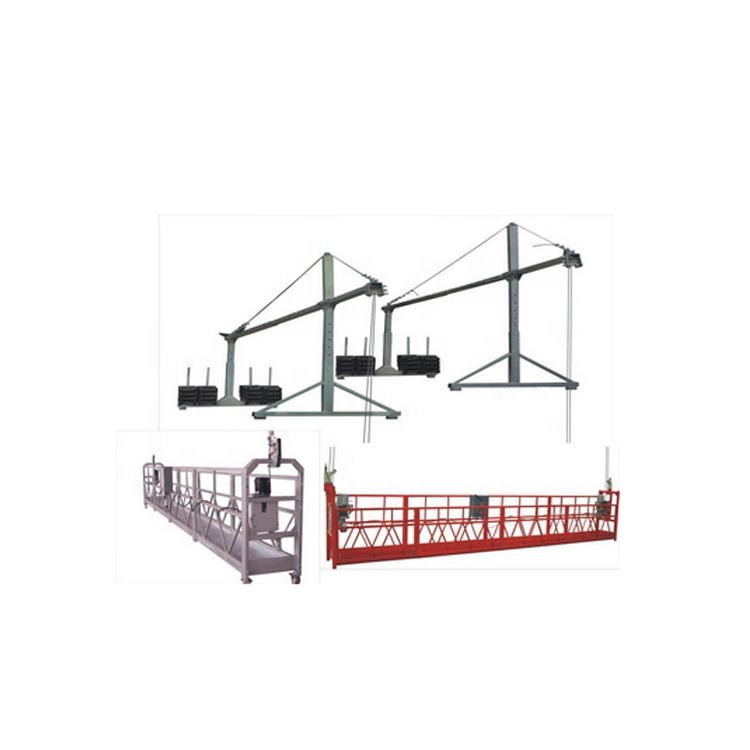

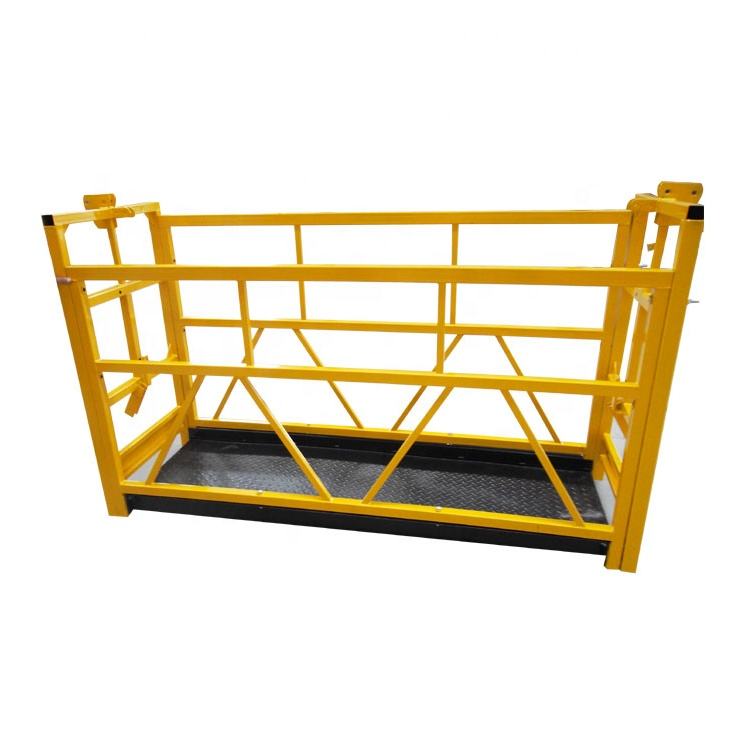

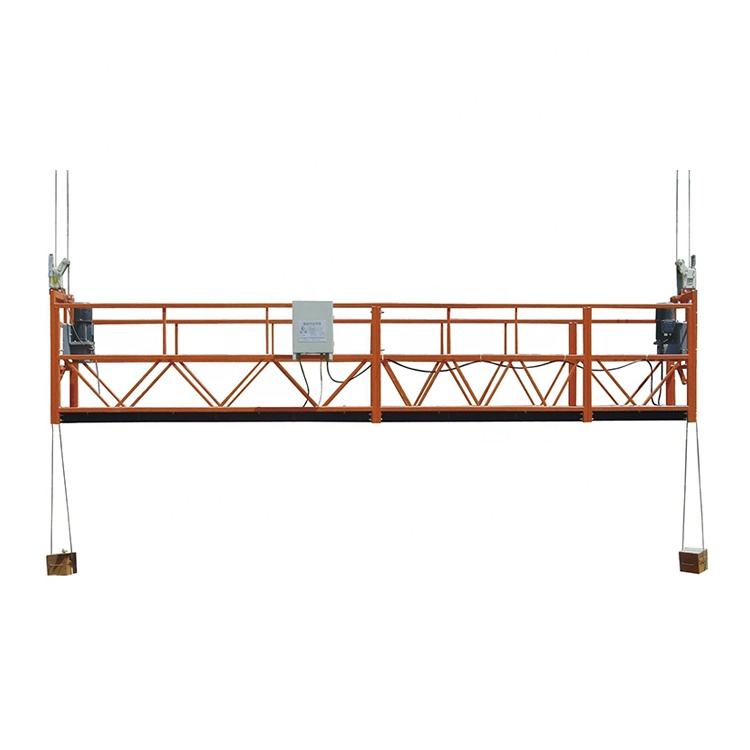

3.Product Show
4.Hoist
LED Series of new type repairable hoist is a tatest product our company research and development through the kinds of test, it prove that can be self repaired and used again for the wire rope's force-deformation ,bending ,breaking in order to greatly increases the workng life.
| Hoist | ||
| Model | LTD8.0 | LTD6.3 |
| Rated Lifting | 800KG | 630KG |
| Lifting Speed | 9.0m/min | 9.5m/min |
| Power | 1.8KW | 1.5KW |
| Voltage | 380V | 380V |
| Rotational speed | 1420r/min | 1420r/min |
| Braking moment | 15N m | 15N m |
| Frequency | 50Hz | 50Hz |
5.Safety Lock
| Safety Lock | Allowable load | >800kg | >800kg |
| Diameter | 8.3mm-9.1mm | 8.3mm-9.1mm | |
| Allowable force | 30KN | 30KN | |
| Cable locking angle | 3°~8° | 3°~8° |
6.More related products for you to choose
7.If you have any problems, please feel free to contact us!
