Double Flange Carbon steel Pipe Mechanical Coupling Dismantling Joint For Pipe

FOB Reference Price:Get Latest Price
$5.00 - $100.00 / Piece | 1 Piece/Pieces (Min. Order)
Type:
Coupling
Pipe size:
DN40mm - DN1600mm
Material:
Iron
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 20 Pieces)
Customized packaging (Min. Order: 20 Pieces)

More

Graphic customization (Min. Order: 2 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Customized support:
OEM, ODM
Place of Origin:
Shanxi, China
Brand Name:
SOLID
Model Number:
dismantling joint
Technics:
Casting
Connection:
Welding
Shape:
Equal
Head Code:
Round
Product name:
ductile iron pipe fitting dismantling joint
Color:
Blue
Standard:
ISO2531 EN545
Pressure:
PN10,PN16,PN25
External coating:
bitumen/epoxy
Internall coatings:
cement mortar lining
Surface treatment:
Painting
Connection type:
T type
Accessory:
NBR/SBR/EPDM/bolts & nuts
Certificate:
ISO 9001:2008
Product Certification certification
CE Certified.
Valid from 2018-06-11 until 2023-06-10
Supply Ability
Supply Ability:
10000 Ton/Tons per Month dismantling joint
Packaging & Delivery
Packaging Details
cases,pallets or as per customers'requirements
Port
Tianjin,Qingdao
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 To be negotiated

Ductile iron Dismantling Joint For Pipes

Product Description

Use

Thomas Dismantling Joints are designed to provide a simple method of installation and removal of flanged pipeline components such as valves, pumps and strainers from a pipeline. Dismantling Joints allow a variable setting distance of 50mm on site and are supplied complete, ready to be installed. Dismantling Joints are restrained products that prevent axial pipe movement, they are most suited to valve and pump chambers, and complex steel fitting installations.

Available Range
From DN40mm - DN1600mm.

Material of Construction
End Rings - Ductile Iron to BS2789 Grade 420/12 , 500/7
Sleeves - Ductile Iron to BS2789 Grade 420/12 , 500/7
Flanges - Ductile Iron to BS2789 Grade 420/12 , 500/7
Coating - Fusion Bonded Epoxy to SABS 1217 , minimum thickness 250 microns, colors in

RAL5005, RAL5015 , RAL3009 , RAL9005, RAL9011 or others .
Bolts - Steel to BS970 Grade 070M20 , Carbon steel Grade 8.8, SS304 or SS316

bolts available upon requests.
Bolt coating - Galvanized
Rubber Seal - E.P.D.M. Grade E to BS2494 1990 Type W&D

Dismantling joints

Use
Thomas Dismantling Joints are designed to provide a simple method of installation and removal of flanged pipeline components such as valves, pumps and strainers from a pipeline. Dismantling Joints allow a variable setting distance of 50mm on site and are supplied complete, ready to be installed. Dismantling Joints are restrained products that prevent axial pipe movement, they are most suited to valve and pump chambers, and complex steel fitting installations.

Available Range
From DN40mm - DN1600mm.

Material of Construction
End Rings - Ductile Iron to BS2789 Grade 420/12 , 500/7
Sleeves - Ductile Iron to BS2789 Grade 420/12 , 500/7
Flanges - Ductile Iron to BS2789 Grade 420/12 , 500/7
Coating - Fusion Bonded Epoxy to SABS 1217 , minimum thickness 250 microns, colors in

RAL5005, RAL5015 , RAL3009 , RAL9005, RAL9011 or others .
Bolts - Steel to BS970 Grade 070M20 , Carbon steel Grade 8.8, SS304 or SS316

bolts available upon requests.
Bolt coating - Galvanized
Rubber Seal - E.P.D.M. Grade E to BS2494 1990 Type W&D

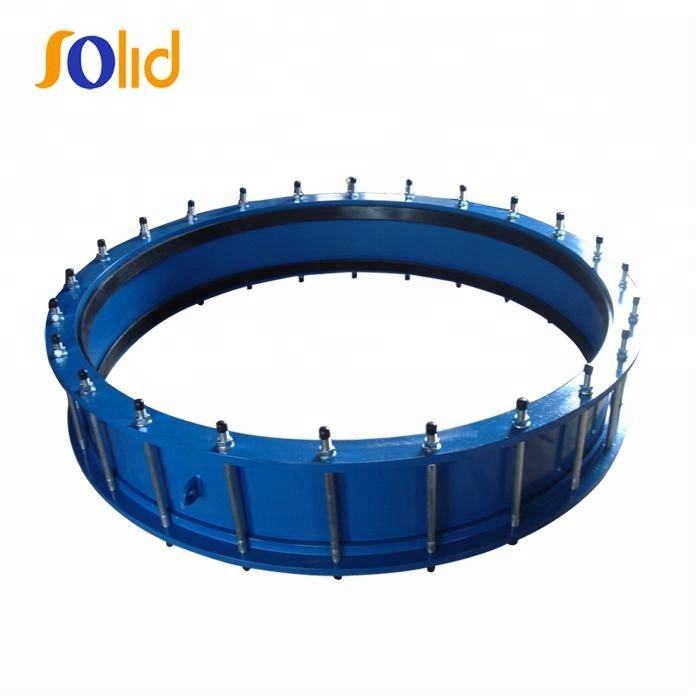

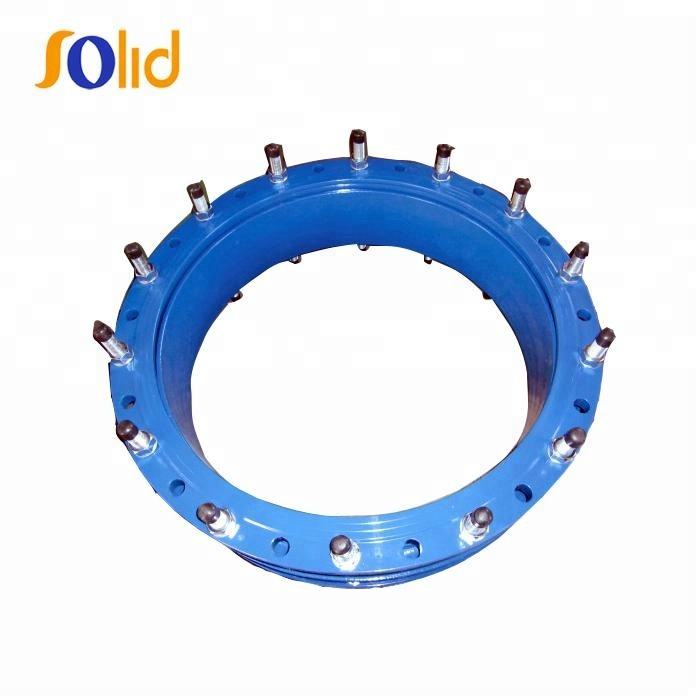

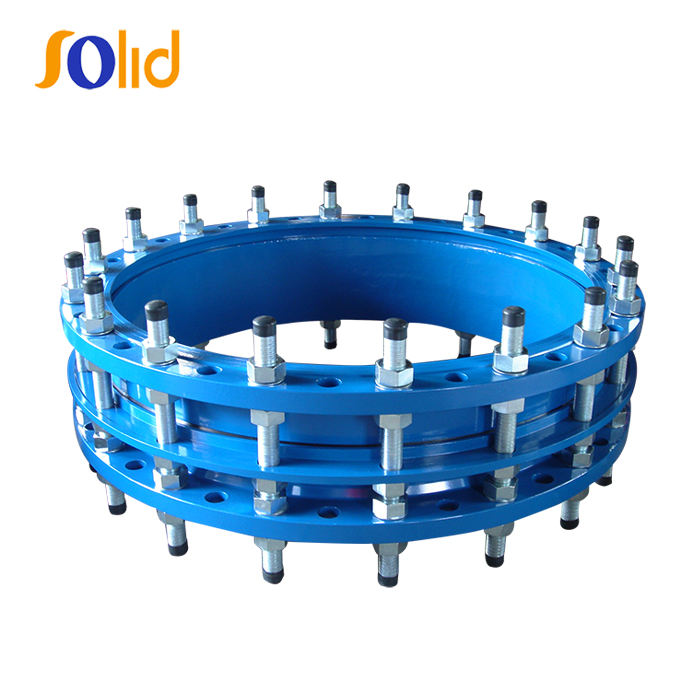

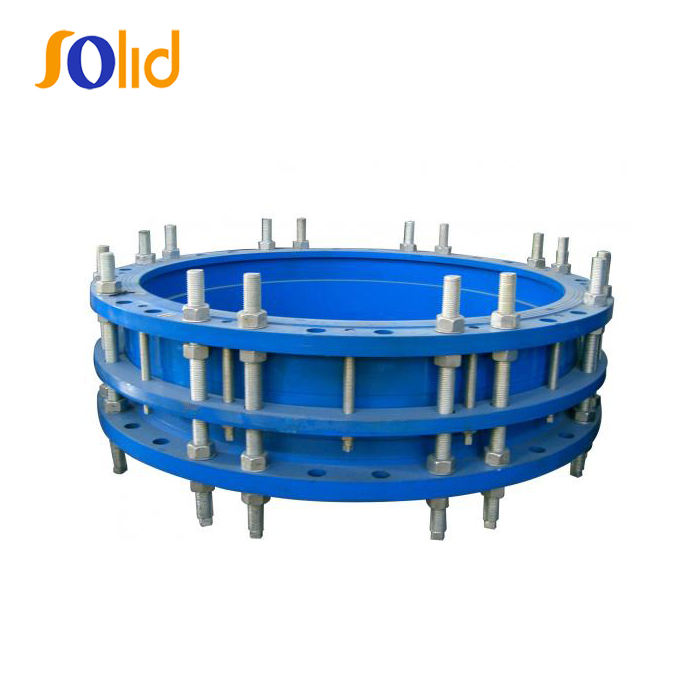

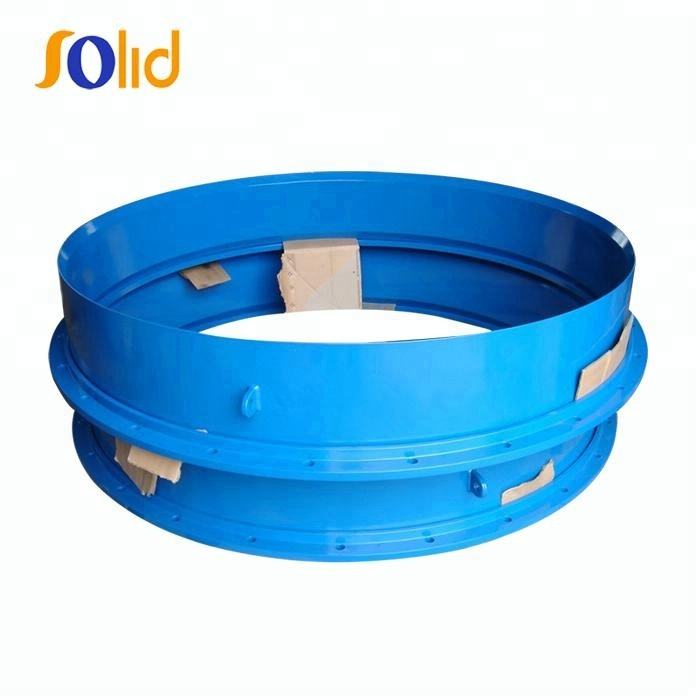

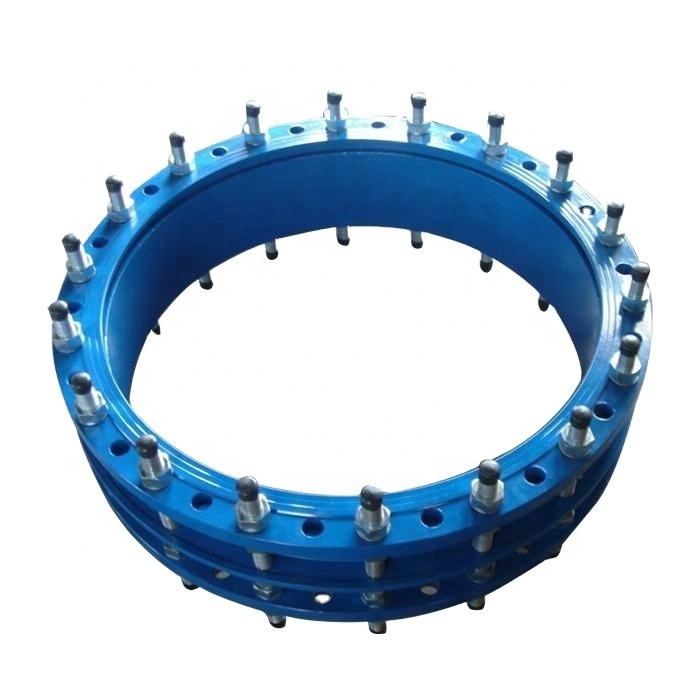

Detailed Images



Packaging & Shipping

 Packaging: cases,pallets or as per customers'requirements
