Ductile Iron Y Type strainer valve Y Type Flanged ends Water Filter

FOB Reference Price:Get Latest Price
$10.00 - $100.00 / Piece | 10 Piece/Pieces (Min. Order)
Material:
Casting
Pressure:
Medium Pressure
Samples:
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 25 Negotiable
Customization:
Customized packaging (Min. Order: 20 Pieces)
Graphic customization (Min. Order: 20 Pieces)

More

Customized logo (Min. Order: 20 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Customized support:
OEM, ODM
Place of Origin:
Shanxi, China
Brand Name:
SOLID
Model Number:
Y strainers
Application:
General, Drinking water,sewage,seawater,food,medicines,gas,oil and acid
Temperature of Media:
Normal Temperature
Power:
Manual
Media:
Water
Port Size:
Standard, DN15mm-650mm
Structure:
Y strainers
Color:
Blue/Green/Red/Black or as the customer requirement
Design standard:
BS 5155,EN 593
End flange standard:
BS EN 1092-2
Nominal pressure:
1.0/1.6
Body material:
GG25,GGG50,WCB,CF8,CF8M
Certificate:
ISO9001
Type:
y type strainer
Connection:
Flange Ends
Product Certification certification
CE Certified.
Valid from 2018-06-11 until 2023-06-10
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month Y Strainers
Packaging & Delivery
Packaging Details
wooden case,plywood case
Port
Xingang,Qingdao
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 25 To be negotiated

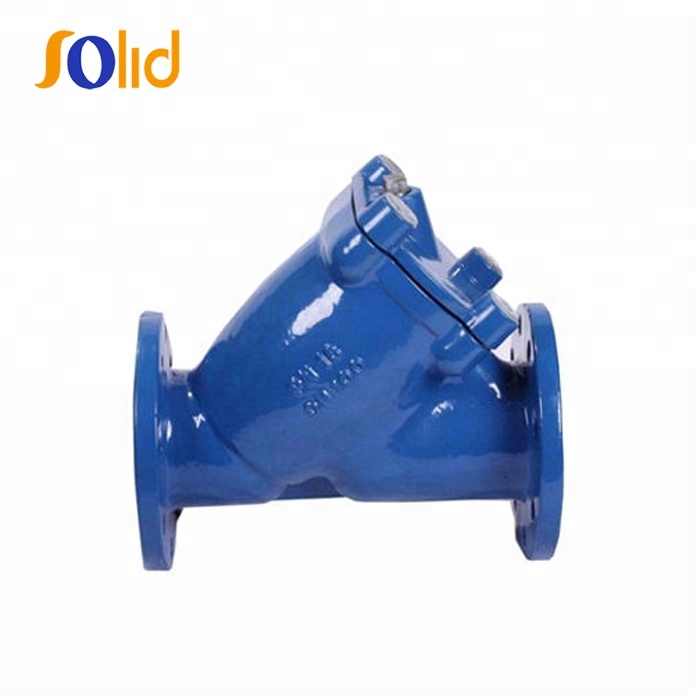

Ductile Iron Y Type strainer with Flanged ends

Product Description



Detailed Product DescriptionThe Strainers carry out superficial sieving of the water , retaining those particles that are bigger than the screen holes

We have at your disposal Strainers in"Y" shape

 Regarding their installation , the Strainers can be either equipped with flanges fitted on their  ends or with internal threads .



Features:

1) Body material : Ductile iron GGG500-7 or Cast Iron GG20

2) Cover : Ductile iron GGG500-7 or Cast Iron GG20

3) Screen : Stainless Steel

4) Gasket : Synthetic Fiber ( Asbestos Free)

5) Plug : Ductile iron GGG500-7 or Cast Iron GG20

6) Bolt : Carbon Steel or Stainless Steel

7) Size: DN50 - DN300

8) Standard: DIN3202 F1, ANSI CLASS 125, BS4504 PN16

9) Suitable media: water, oil and gas

10) Body coating : Fusion bonded epoxy coating or Bitumen coating at customers' request.
11) Package : Wooden cases
