- Type:
-
Metal Check Valves, dule plate, double door check valve/ non return valve
- Place of Origin:
-
Shanxi, China
- Brand Name:
-
SOLID
- Model Number:
-
Check valve
- Port Size:
-
Standard
- Color:
-
Blue or Customer's Request
- Body material:
-
Cast iron,Ductile iron,Carbon,S.steel
- Connection:
-
wafer type
- Size:
-
DN50-DN800
- Medium:
-
Water,gas,steam acids
- Plate material:
-
ductile iron, stainless steel, brass, Al-bronze etc
- Certificate:
-
ISO9001
- Product name:
-
Wafer type dual plate check valve / non return spring valve
- Packing:
-
Plywood Case
- Application:
-
General
- Temperature of Media:
-
Normal Temperature
- Power:
-
Manual
- Media:
-
Water
- Structure:
-
Check
- CE Certified.
- Valid from 2018-06-11 until 2023-06-10
- Supply Ability:
- 10000 Piece/Pieces per Month Check Valve
- Packaging Details
- plywood case or wooden case,or as per customers' requirements
- Port
- Tianjin,Qingdao
- Lead Time :
-
Quantity(Pieces) 1 - 10 >10 Est. Time(days) 15 To be negotiated

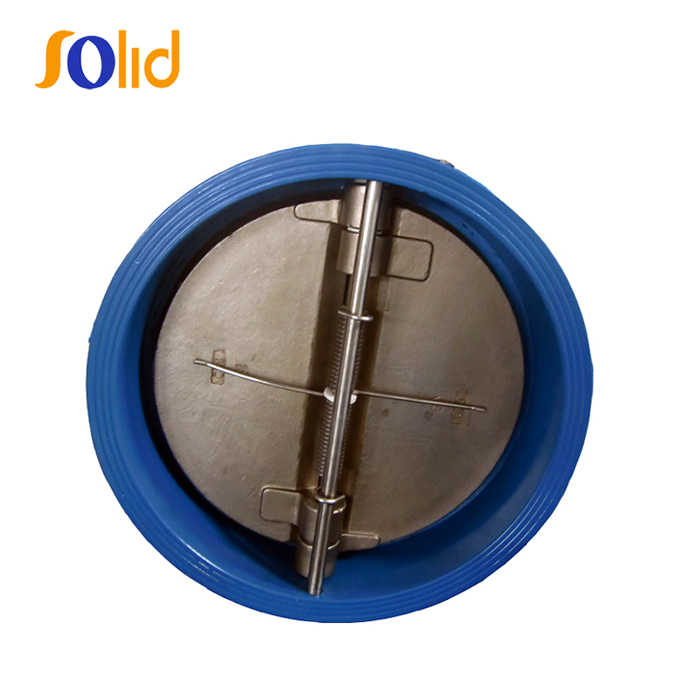

Ductile Iron Wafer Type Double Disc Butterfly Check Valve
Features:
1)Working temperature: -25*C~120*C
2)Applicable medium: Fresh water, sewage, sea water, air, vapor, oils, gas etc.
3)Materials:
Body: GG25, HT200, WCB, SS304
Plate: GGG40+EPOXY
Hinge Stem: SS304
Stop Stem: SS304
Body Seat: Viton
Eye Bolt: Steel, Carbon Steel
Spring Bearing: PTFE
Body Bearing: PTFE
Plug: Steel, Carbon Steel
Standard:
Design Standard: MSS SP-67, API609, EN593
Flange End: DIN, ANSI, BS, ISO, JIS.
Top Flange: ISO5211
Face to Face: API609, ISO5752 series 20, BS5155
Test&Check: API598
