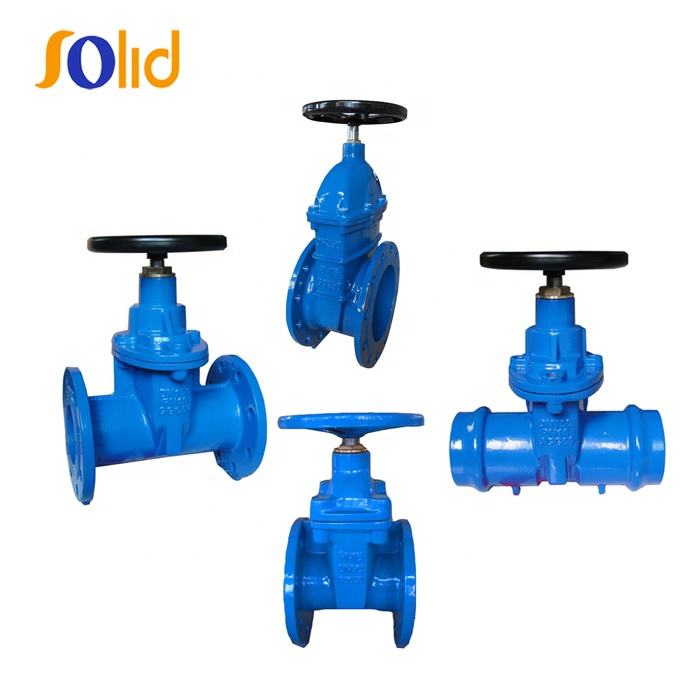

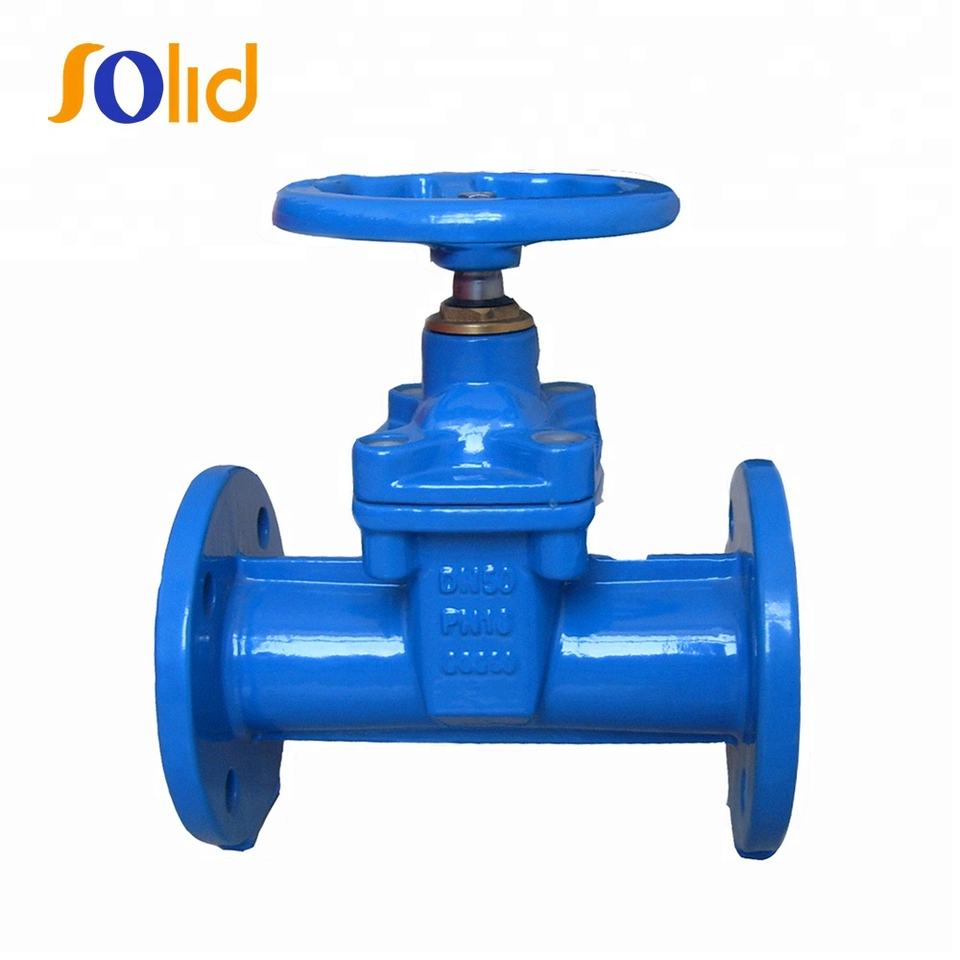

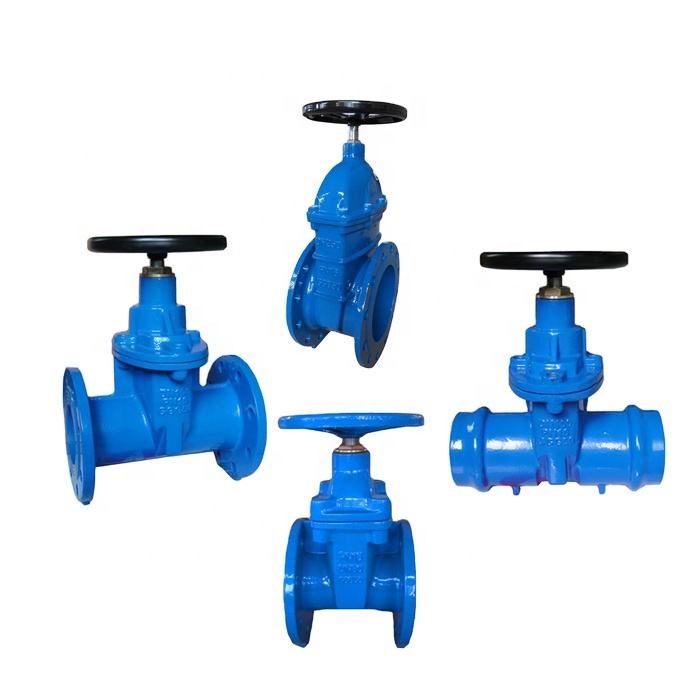

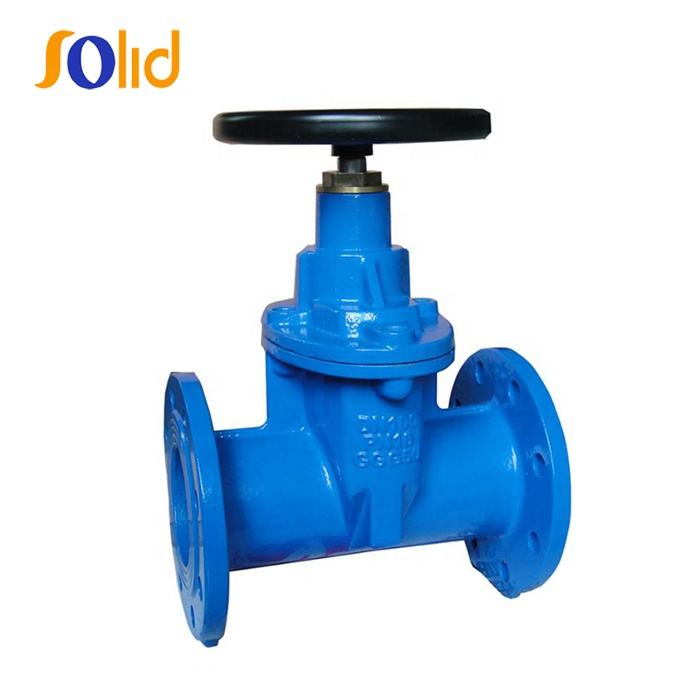

Ductile iron/cast iron 2" inch flange gate valve manufacturer

FOB Reference Price:Get Latest Price
$10.00 - $100.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanxi, China (Mainland)
Brand Name:
SOLID
Model Number:
gate valve
Application:
General
Material:
Casting
Temperature of Media:
Normal Temperature
Pressure:
Low Pressure, PN10, PN16
Power:
Manual
Media:
Water
Port Size:
standard
Structure:
Gate
Standard or Nonstandard:
Standard
Color:
Blue
Body material:
Ductile Iron GGG500-7
Standard:
AWWA, DIN3352 F4/F5, BS5163, BS5150
Size:
2" - 16"
Connection:
flanged type, push-on type, mechanical joint type, plain ends type
Medium:
Water Oil Gas
Coating:
Fusion-bonded epoxy 200-250 microns inside and out side
Packing:
carton for each item , wooden boxes outside
Product Certification Verified
CE Certified.
Valid from 2018-06-11 until 2023-06-10
Supply Ability
Supply Ability:
100000 Set/Sets per Month flange gate valve
Packaging & Delivery
Packaging Details
plywood case,wooden case or as per customers' requirements
Port
Tianjin,Qingdao

Ductile iron/cast iron 2" inch flange gate valve manufacturer

Product Description



1) Product information: the gate valves supplied are mainly used for adjusting water, steam, oil, gas, and natural gas in chemical industries

2) Standards: AWWA, DIN3352 F4/F5, BS5163, BS5150

3) Connection type: flanged type, push-on type, mechanical joint type, plain ends type

4) Material:

  a) Body : Ductile Iron GGG500-7

  b) Wedge : D/I , core fully vulcanized with NBR or EPDM rubber

  c) Wedge Nut : Brass

  d) Stem : Stainless steel , BS970 431S29 or DIN17440x20Cr13

  e) Gasket : NBR

  f) Bonnet : GGG500-7

  g) O ring : NBR

  h) Washer : Carbon steel or Stainless steel .

5) Size: 50-400mm/2" - 16"

6) Pressure grade: PN10, PN16

7) Coating:

    a) Fusion-bonded epoxy 200-250 microns inside and out side

b) Coating as per customers' requirement

8) Package : carton for each item , wooden boxes outside .





Product drawings



Detailed Images





Packaging & Shipping



Factory Overview







Related Products
Our Services

Sample Room

Our Certificate

Company Information



FAQ

1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.

4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.

5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.



6. Which price terms could accepted?
A: FOB,CIF all acceptable.
