ISO 2531 / EN 545 K9, K7, C Class Ductile cast iron pipe China

FOB Reference Price:Get Latest Price
US $750-1,150 / Tons | 1 Ton/Tons ductile iron pipe weight per meter (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanxi, China (Mainland)
Brand Name:
SOLID
Model Number:
K9 ductile iron pipe
Length:
5.7m,6m
Standard:
ISO2531, ISO2531/EN545/EN598
Application:
pipeline, Potable Water
Diameter:
DN80-DN2600, DN80mm - DN2600mm
Shape:
Round, Round
Hardness:
<230, <230HB
Pipe Wall Thickness:
K9, C40, C30, C25, etc, K7/K8/K9/C40/C30/C25
Pull Strength:
420Mpa
Yield (≥ MPa):
≥300Mpa, 220 MPA
Material:
Ductile Iron, Ductile Iron
Type:
Welded
joint type:
t-type, flange type, k type
also supply:
ductile iron pipe manufacturer
Supply Ability
Supply Ability:
10000 Ton/Tons per Month schedule 40 cast iron pipe
Packaging & Delivery
Packaging Details
packet with steel belt
Port
Xingang,Qingdao,Shanghai

ISO 2531 / EN 545 K9, K7, C Class Ductile cast iron pipe China

Product Description



1)  The standard of pipe: ISO 2531, EN545 , EN598.

2)  Pipe class: K9, C40, C30, C25, etc.

3)  Pipe joint: push-on joint(Tyton joint), K type joint, self-restrained joint

4)  Effective length: in general, the pipe length is 6m for bulk shipment and  5.7m for container shipment.

5)  Internal lining: cement mortar lining as per ISO4179

6)  Zinc coating: at least 130g/m2 as per ISO 8179

7)  Bitumen painting: at least 70um as per ISO 8179

8)  Gaskets are NBR rubber, natural rubber, SBR rubber or EPDM rubber ring as per ISO4633

9)   DN 80 - 2,600 mm

10)   High strength, lighter than gray iron, good corrosion resistance, no furring, small flow resistance, easy fixing, long life time

11)   Checked by automatic inspection equipment

12)  Chemical composition: (%)

a)  C: 3.5 - 4.0

b)  Si: 1.9 - 2.6

c)  Mn:0.15 - 0.45

c)  P: <0.06

d)  S: <0.02

13) Mechanical properties

a)  Tensile strength: ≥420MPa

b)  Yield strength: ≥300Mpa

c)  Hardness: ≤230HB

d)  Elongation%: DN80 - 1000 ≥10  DN1200 - 2200 ≥7

14)  Process and testing:

a) Induction furnace and treated metal (Chemical analysis of raw material, spheroidizing & Nodularity)

b) Casting (Visual check and weight check)

c) Heat treatment (Micro structure)

d) Hydrostatic test (Pressure test)

e) Dimensional checks (Checking pipe length and joint, OD, wall thickness, appearance)

f) Zinc spraying (Thickness testing)

g) Lining and coating (100% visual check, thickness testing randomly)

i) Marking and packing (100% visual check)

15) The pipe coating can be customized, such as, zinc-aluminum alloy, PU, etc.



Packing: bundled with steel belts or in bulk

Shipment: in bulk or container



Technical parament



DN(mm)

DE(mm)

THICKNESS OF WALL(mm)

WEIGHT OF SOCKET(kg)

TOTAL WEIGHT(kg)

K8

K9

K10

3.4

K8

K9

K10

80

98

6.0

6.0

6.0

4.3

77.0

77.0

77.0

100

118

6.0

6.0

6.0

5.7

93.7

95.0

95.0

125

144

6.0

6.0

6.0

7.1

119.0

119.0

121.0

150

170

6.0

6.O

6.0

10.3

138.0

144.0

144.0

200

222

6.0

6.3

6.4

18.9

183.0

194.0

194.0

300

326

6.4

7.2

8.0

23.7

290.0

323.0

357.0

350

378

6.8

7.7

8.5

29.5

359.0

403.0

441.0

400

429

7,2

8.1

9.0

38.3

433.0

482.0

532.0

450

480

7.6

8.6

9.5

42.8

515.0

577.0

632.0

500

532

8.0

9.0

10.0

59.3

600.0

669.0

736.0

600

635

8.8

9.9

11.0

79.1

791.0

882.0

971.0

700

738

9.6

10.8

12.0

102.6

1009.0

1123.0

1237.0

800

842

10.4

11.7

13.0

129

1255.0

1394.0

1537.0

900

945

11.2

12.6

14.0

161.3

1521.0

1690.0

1863.0

1000

1048

12.0

13.5

15.0

237.7

1811.0

2017.0

2221.0

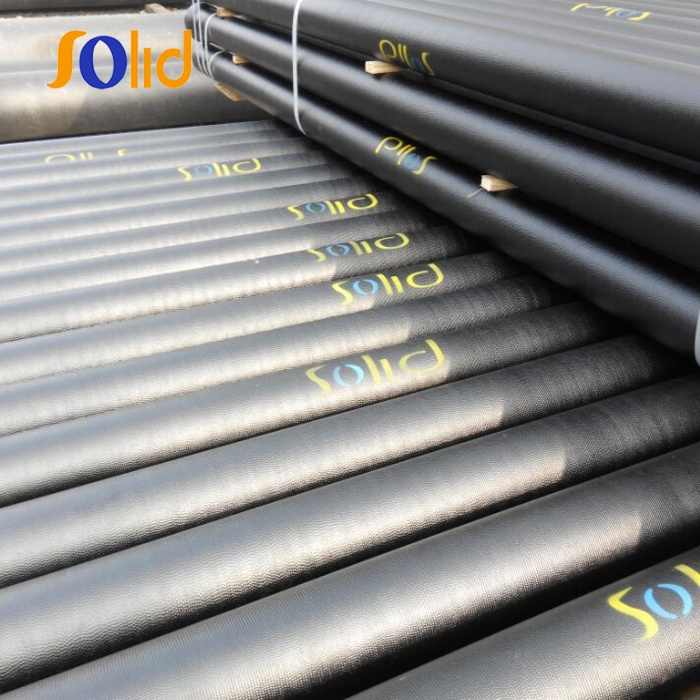

Detailed Images





 ISO 2531  EN 545 K9, K7, C Class Ductile cast iron pipe China (1).jpg ISO 2531  EN 545 K9, K7, C Class Ductile cast iron pipe China (2).jpg ISO 2531  EN 545 K9, K7, C Class Ductile cast iron pipe China (3).jpg



Packaging & Shipping

  Packing: in bulk or container

Factory Overview

DI pipe workshop

Production Flow



Our Services

Service

Sample Room

sampleOur CertificateCertificate
