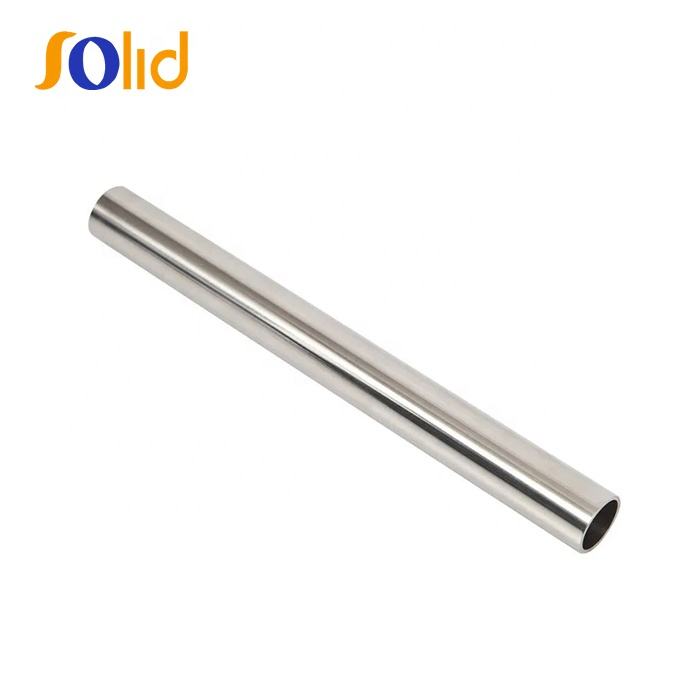

ASTM A312 TP316l/TP304l Small Diameter Stainless Steel pipes/Tubes

FOB Reference Price:Get Latest Price
US $600-800 / Ton | 0.5 Ton/Tons ss seamless pipes (Min. Order)
Supply Ability:
3000 Ton/Tons per Month stainless steel pipes astm a312 tp316l/tp304l
Port:
Tianjin,Qingdao
Report Suspicious Activity
Overview
Quick Details
Standard:
ASTM, AISI, DIN, EN, GB, JIS
Place of Origin:
Shanxi, China (Mainland)
Brand Name:
SOLID
Model Number:
seamless steel tubes
Type:
Welded, seamless and welded
Steel Grade:
TP316, 300 Series
Application:
petroleum, smelting, foodstuff, power, papermaking, chemical, medical, decoration construction housebuilding oil
Certification:
ISO
Welding Line Type:
ERW, ERW, Spiral Welded
Thickness:
XS STD sch5 sch10 sch20 sch30 sch40 sch80 sch160, 0.3mm-30mm
Outer Diameter:
33.4-508mm
WT:
2.11-30mm
End:
BE Or PE
Length:
6 meters or as your requirement
Pipe type:
Welded/seamless
Product name:
304 stainless steel pipe price list
Packaging & Delivery
Packaging Details
Bundles ,Plywood cases
Delivery Time
Shipped in 30 days after payment

ASTM A312 TP316l/TP304l Small Diameter Stainless Steel pipes/Tubes

Product Description





Specifications:

direct channel allows depth.

Hot rolled, hot extruded steel tube, the diameter is less than or equal to 140mm less than 5% of the nominal wall thickness, the maximum depth of not more than 0.5mm; cold drawing (rolling) steel is not greater than 4% of the nominal wall thickness, the maximum depth of not more than 0.3mm.

Technical Parameter for Stainless Pipe

Tensile Strength

520-530Mpa

Yield Strength 0.2%

205 - 225

Elongation %

35 - 38

Corrosion test

ACCEPTABLE

Flaring

ACCEPTABLE

Hydraulic

ACCEPTABLE

Eddy Current

ACCEPTABLE

PMI

ACCRPTABLE

Surface

Acid wash, annealing

Ends

Beveled and Caps

Packing

Woven bags

 About 2ton for each bundle

Dimension

OD Size

1/8 - 32 inch

Thickness

XS STD sch5 sch10 sch20 sch30

sch40 sch80 sch160

Length

5 - 5.8m, 6m,double random length

Certificate

ISO/SGS/BV/Lloyd/ABS/CCS/RINA/GL/DNV



Description:

For the steel to withstand the pressure to the hydraulic test to test its ability and quality, leakage, soaked or expansion for qualified does not occur at the prescribed pressure, some steel according to the requirement of standard or edge test, flaring test, flattening test.

Also known as the seamless stainless steel pipes, stainless steel seamless pipe, steel ingot or billet is made by solid capillary hole, then hot, cold or cold drawing made. Specification for seamless steel tube with outer diameter * wall thickness mm



Applications:

Used in industries as chemical engineering, petroleum, medicine, food, energy, nuclear power, aerospace, environmental protection, boiler, gas, war industry, machinery, ship building and so on.





Detailed Images



Production Flow





Our Services

1. Fast Delivery: around 10 days below 500Metric Tons after sight of Irrevocable L/C or Deposit;( lots of high quality products are in stock)

2. Quality Assured: Strictly acc. To International standard ASTM & BS & EN & JIS, with System ISO certification

3. Good Service: supplied professional technical guide free of charge at anytime;

4. Reasonable Price: to be better support your business.

Company Information



We are one of the leading manufacturers of ductile iron pipe,pipe fittings,dismantling joints,flanged adaptors, couplings, valves, water meter,manhole covers,steel flanges , steel pipe,steel pipe fitting,PVC pipe,PVC pipe fitting,PE pipe,PE pipe fitting,rubber O-rings, , fasteners, pumps, motor shells and other castings and forgings. Our products are made according to different standards, such as ISO2531, EN545, EN14525, ISO4422, ISO7005, DIN3352, BS5163, DIN3202, BS2494, BS4504, EN124 and other relevant ISO, EN, BS, DIN and ANSI standards. Moreover, our products have been selling well in European, Middle East, Southeast Asian, South African and South American countries for more than 10 years. We can also make the castings and forgings according to customers' drawings or samples. Presently, we are looking forward to your inquiries and to establishing long term cooperation relationship based on mutual benefits.

FAQ

1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.

4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.

5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.



6. Which price terms could accepted?
A: FOB,CIF all acceptable.
