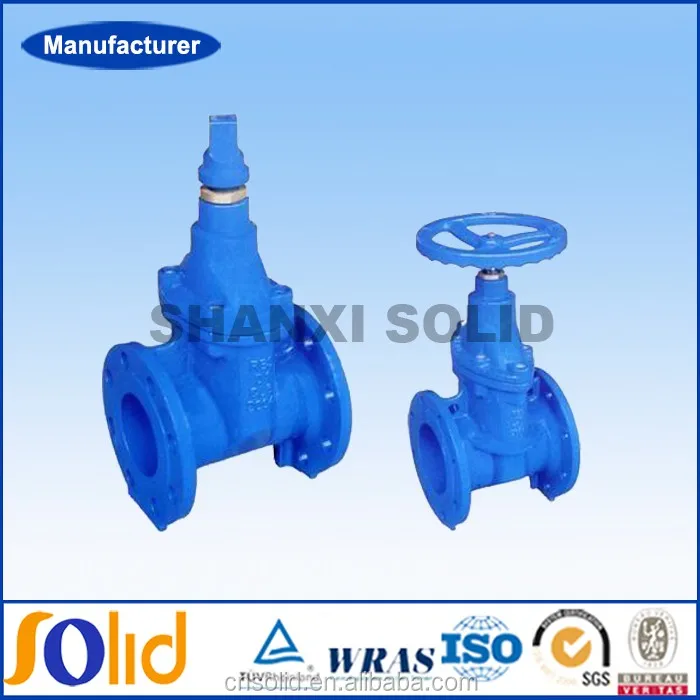

PN10 PN16 Hand wheel Resilient Seated Cast Iron Flanged Gate Valve

FOB Reference Price:Get Latest Price
US $10-100 / Piece | 1 Piece/Pieces Cast Iron Flanged Gate Valve (Min. Order)
Supply Ability:
1000000 Piece/Pieces per Month Cast Iron Flanged Gate Valve
Port:
Xingang,Qingdao
Contact Supplier Start Order
Loading...
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Gate
Pressure:
Low Pressure, PN10, PN 16
Power:
Manual
Material:
Casting
Temperature of Media:
Normal Temperature
Media:
Water
Port Size:
Standard
Place of Origin:
Shanxi, China (Mainland)
Model Number:
gate valves
Brand Name:
SOLID
Application:
General
color:
blue
keyword:
resilient seat gate valve
Size:
DN50 ~ DN 1000
Temperature:
-20 ~120 C
operator:
hand wheel
wedge:
rubberizing for drinking water
Standard:
DIN F4 / F5 / BS5163A
Seating:
underground
Body:
cast iron painted with epoxy
Packaging & Delivery
Packaging Details
carton for each item,wooden boxes outside
Delivery Time
Shipped in 25 days after payment

PN10 PN16 Hand wheel Resilient Seated Cast Iron Flanged Gate Valve

Product Description



Body: cast iron painted with epoxy

Painting: epoxy by fusion with 250 micron thick

Rod: Stainless steel

Working pressure: 1600Kpa

Seal: Rubber for low and high pressure

standard: ISO 9001

Cast Iron Flanged Gate Valve



Pressure

Max Working Pressure: 16 Bar

Shell Test Pressure: 24 Bar



Specifications:

NO

Part name

Material

1

Body

Ductile cast iron

2

Wedge

Ductile cast iron + EPDM

3

Stem nut

ZCuAl10Fe3 Gunmetal

4

Gasket

EPDM

5

Bonnet

Ductile cast iron

6

Gland gasket

ZCuAl10Fe3 Gunmetal

7

Stem

2Cr13  S.S.x 20Cr13

8

Gland

Ductile cast iron

9

Rubber wiper

EPDM/NBR

10

Hand wheel

Ductile cast iron

Applications

This valve widely applied in the liquid pipes for opening or closing fixing in such water, sewage disposal, electric power, energetics pipe , chemical, shipping, energy sources etc.

Applicable Standards
a.American Standard
Design to ANSI/AWWA C509
Face to face dimension to ASME B16.10-2000(ISO 3 series)
Flange and drilling To SME/ANSI B16.42-1998
b.British Standard
Design to BS5163,BS5150
Face to face dimension to BS5163(ISO 3series,ISO19 series)
Flange and drilling To BS4504 part1(EN1092)
c.Germany Standard
Design to DIN3352
Face to face dimension to DIN3202(F4:ISO 14 series;F5: ISO 15 series)
Flange and drilling to BS EN1092



Detailed Images





Related Products



Packaging & Shipping

 Package : carton for each item , wooden boxes outside



Our Services



1. Fast Delivery: around 10 days below 500Metric Tons after sight of Irrevocable L/C or Deposit;( lots of high quality products are in stock)
2. Quality Assured: Strictly acc. To International standard ASTM & BS & EN & JIS, with System ISO certification
3. Good Service: supplied professional technical guide free of charge at anytime;
4. Reasonable Price: to be better support your business.



Company Information
We are one of the leading manufacturers of ductile iron pipe,pipe fittings,dismantling joints,flanged adaptors, couplings, valves, water meter,manhole covers,steel flanges , steel pipe,steel pipe fitting,PVC pipe,PVC pipe fitting,PE pipe,PE pipe fitting,rubber O-rings, , fasteners, pumps, motor shells and other castings and forgings. Our products are made according to different standards, such as ISO2531, EN545, EN14525, ISO4422, ISO7005, DIN3352, BS5163, DIN3202, BS2494, BS4504, EN124 and other relevant ISO, EN, BS, DIN and ANSI standards. Moreover, our products have been selling well in European, Middle East, Southeast Asian, South African and South American countries for more than 10 years. We can also make the castings and forgings according to customers' drawings or samples. Presently, we are looking forward to your inquiries and to establishing long term cooperation relationship based on mutual benefits.



FAQ



1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.

4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.

5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.



6. Which price terms could accepted?
A: FOB,CIF all acceptable.
