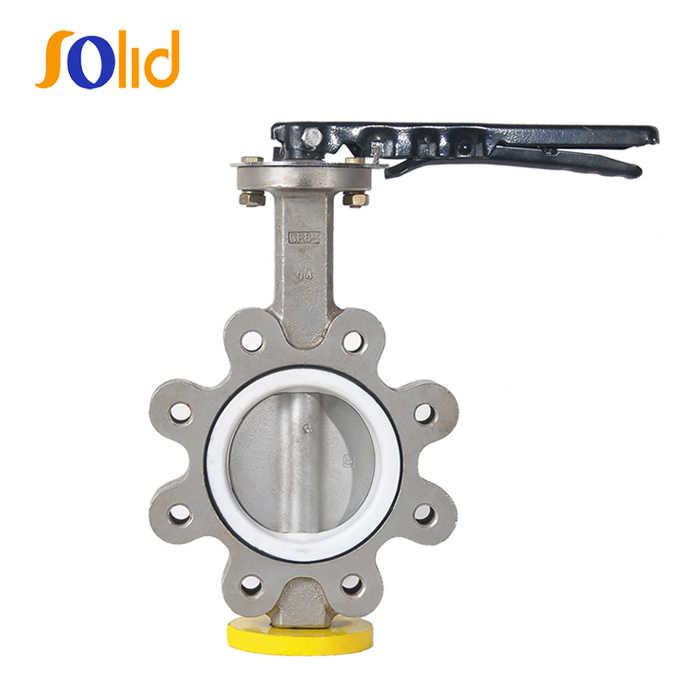

CF8,CF8M/Stainless Steel Lug Type Butterfly Valve

FOB Reference Price:Get Latest Price
$10.00 - $100.00 / Pieces | 1 Piece/Pieces (Min. Order)
Material:
Stainless Steel
Pressure:
Low Pressure
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 10 Pieces)

More

Graphic customization (Min. Order: 10 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Butterfly Valves
Place of Origin:
China
Brand Name:
SOLID
Model Number:
Butterfly Valve
Application:
General
Temperature of Media:
Normal Temperature
Power:
Manual
Media:
Water
Port Size:
Standard
Structure:
Butterfly
Product name:
Stainless Steel Lug Butterfly Valve
End Connection:
Lug
Disc Materials:
CF8,CF8M
Size:
2"-48"
Standard:
JIS,DIN,ASTM,ANSI
Disc type:
single eccentric disc,double eccentric disc,triple eccentric disc
Pressure:
PN6/10/16
Disc Material:
CF8/CF8M
Certificate:
ISO9001:2008 CE
Actuator:
Lever/Worm gear
Product Certification Verified
CE Certified.
Valid from 2018-06-11 until 2023-06-10
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month stainless steel butterfly valve
Packaging & Delivery
Packaging Details
plywood case,wooden case
Port
Tianjin,Qingdao
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 15 To be negotiated

ASTM B148 C95500 PTFE seat stsinless steel wafer butterfly valve

Product Description

Stainless steel lug butterfly valve Features

Single Eccentric Disc-Shaft

Anti-Blow Out Stem

Bi-Directional

Fire safe Design

Low Friction Body Seat

Adoptive Standards

Valve Design: API 609, MSS SP-67

Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1

Pressure Test: API 598

Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16

Top Flange: ISO5211

Standard Test

Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.

Seat Test: 1.1 times the working pressure with water.

Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.

Special Test: On request, any other test can be carried out according to special instruction by client.

Application

 Water Treatment Plant

 Drilling Rigs

 Paper Industry

 Gas Plant

 Sugar Industry

 Cooling Water Circulation

 Breweries

 Heating & Air Conditioning

 Chemical Industry

 Pneumatic Conveyors

 Waste Effluent Treatment Plant

 Compressed Air

Detailed Images

Related Products



Our Services

Sample Room

Our Certificate

Company Information



FAQ

1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.

4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.

5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.



6. Which price terms could accepted?
A: FOB,CIF all acceptable.
