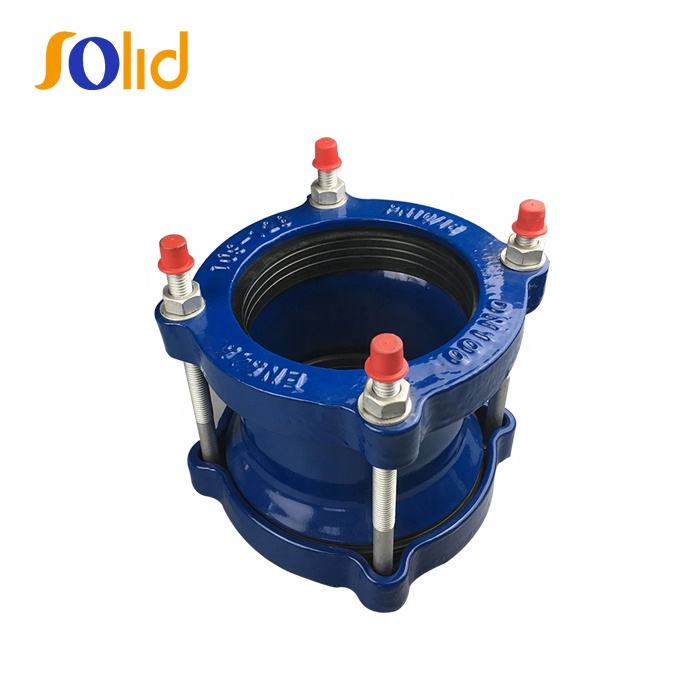

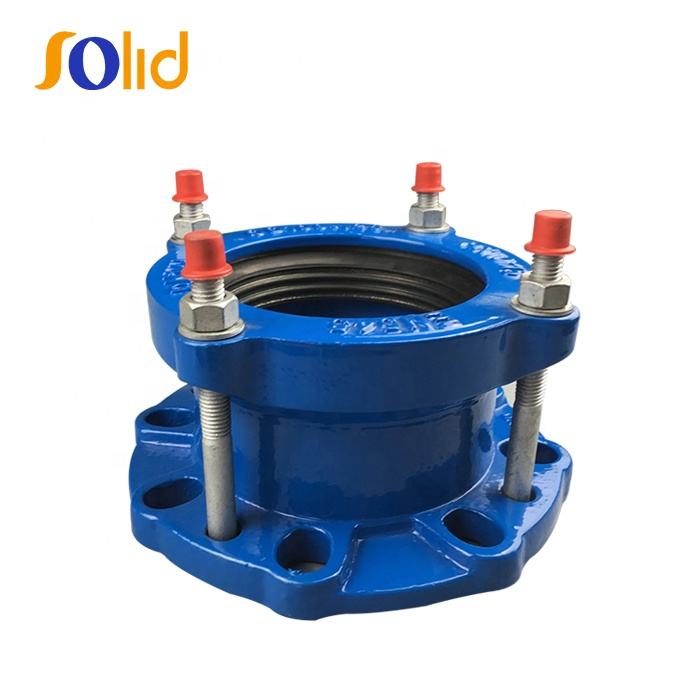

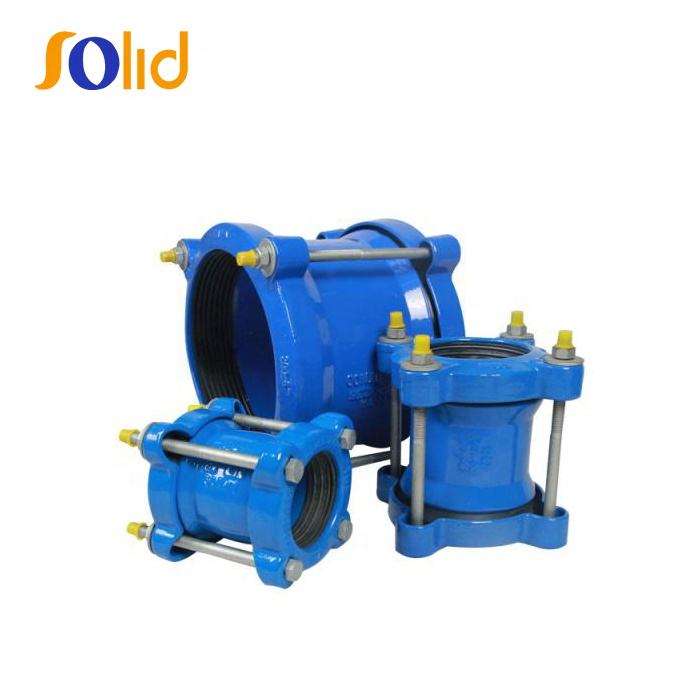

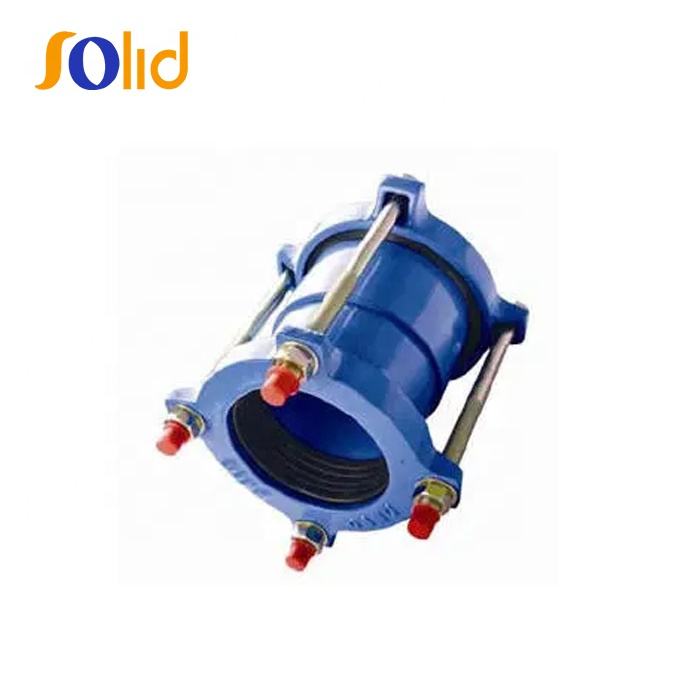

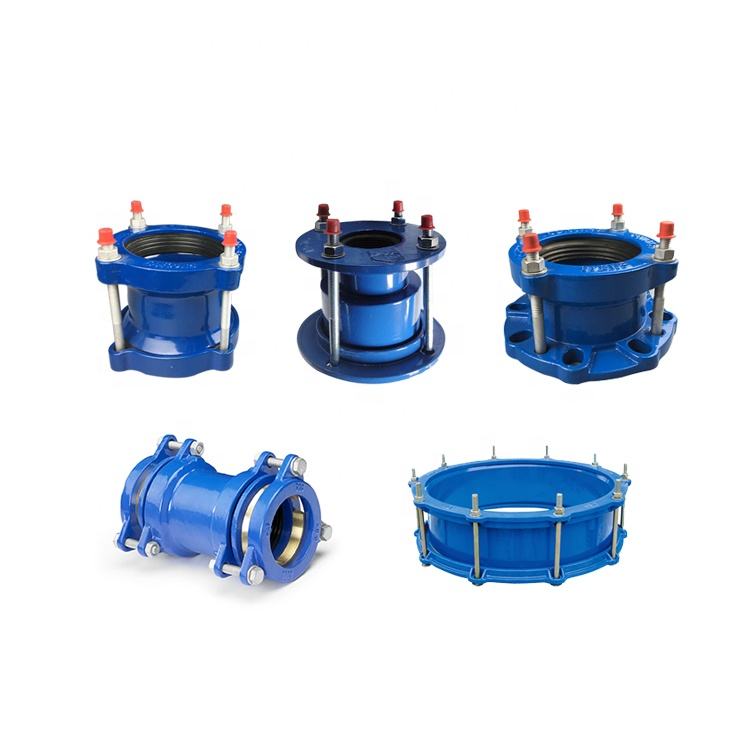

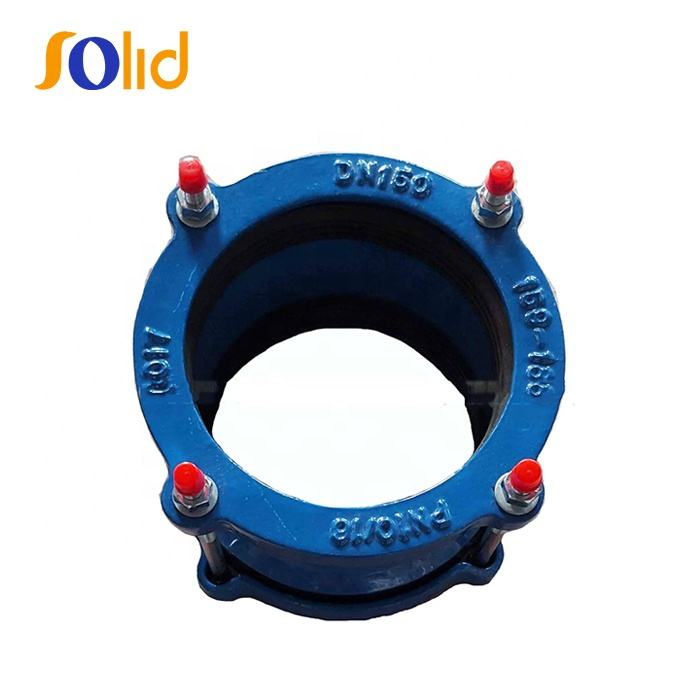

Ductile Iron Flexible Universal Pipe Coupling For Pipes
- Type:
- Coupling
- Pipe size:
- DN40-DN800
- Material:
- Iron
- Lead Time:
-
Quantity(Tons) 1 - 1 >1 Est. Time(days) 40 Negotiable
- Customization:
-
Customized logo (Min. Order: 1 Tons)Customized packaging (Min. Order: 1 Tons)
More
Graphic customization (Min. Order: 1 Tons) Less
- Place of Origin:
-
Shanxi, China
- Brand Name:
-
SOLID
- Model Number:
-
Universal Ductile Iron Pipe Coupling
- Technics:
-
Casting
- Connection:
-
Flange
- Shape:
-
Equal
- Head Code:
-
Round
- Color:
-
blue
- Bolts:
-
Gd8.8 / Stainless Steel / Dacromet Bolt
- Surface Coating:
-
Epoxy Power Coating
- Rubber Sealing:
-
EPDM / NBR
- Structure:
-
Universal
- Material:
-
Ductile Iron
- Flexible or Rigid:
-
Flexible
- Working Pressure:
-
Pn10/16
- Packing:
-
Wooden Case
- Certificate:
-
ISO 9001
- CE Certified.
- Valid from 2018-06-11 until 2023-06-10
- WRAS Certified.
- Valid from 2017-04-01 until 2022-04-01
- Supply Ability:
- 1000 Ton/Tons per Month flange adapter for ductile iron pipe
- Packaging Details
- cases,pallets or as per customers' requirements
- Port
- Tianjin,Qingdao
- Lead Time :
-
Quantity(Tons) 1 - 1 >1 Est. Time(days) 40 To be negotiated
Online Customization
Flexible Universal Ductile Iron Pipe Coupling
* used for pipe connection .
* suit for Ductile Iron Pipe, Cast Iron Pipe, Steel, AC, Plastic pipe
* Working pressure: PN10 / PN16
* Suit for Water, Neutral Liquids and Sewage
2. Features :
* wide range of tolerance
* corrosion resistance
* allow angular deflection of +/- 4°
3. DIMENSION SHEET
S/N | Size | O.D Range |
mm | mm | |
1 | DN40 | 48-60 |
2 | DN50 | 59-73 |
3 | DN65 | 72-85 |
4 | DN80 | 88-103 |
5 | DN100 | 96-116 |
6 | 108-120 | |
7 | 109-128 | |
8 | DN125 | 132-146 |
9 | 138-153 | |
10 | DN150 | 158-172 |
11 | 159-182 | |
12 | DN175 | 192-210 |
13 | DN200 | 198-225 |
14 | 218-235 | |
15 | DN250 | 242-262 |
16 | 250-267 | |
17 | 250-274 | |
18 | 272-289 | |
19 | DN300 | 315-332 |
20 | 322-339 | |
21 | DN350 | 340-360 |
22 | 351-378 | |
23 | 374-391 | |
24 | DN400 | 390-410 |
25 | 398-430 | |
26 | 417-437 | |
27 | 425-442 | |
28 | DN450 | 450-463 |
29 | 455-475 | |
30 | 476-500 | |
31 | DN500 | 500-508 |
32 | 500-533 | |
33 | 526-546 | |
34 | DN600 | 600-630 |
35 | 608-636 | |
36 | 630-650 | |
37 | DN700 | 710-739 |
38 | DN800 | 816-842 |
