V1100F Submersible Sewage Cut Water Pump

FOB Reference Price:Get Latest Price
$3.00 - $15.00 / Piece | 10 Piece/Pieces (Min. Order)
Type:
SEWAGE PUMPS
Maximum Head:
7-17m
Maximum Flow Rate:
18
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 25 Negotiable
Customization:
Customized logo (Min. Order: 20 Pieces)
Customized packaging (Min. Order: 20 Pieces)

More

Graphic customization (Min. Order: 20 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Brand Name:
SOLID
Model Number:
Submersible water pump
Place of Origin:
Shanxi, China
Application:
Developing World Water Solutions, District Energy
Power Source:
Electric
Structure:
Single-stage Pump
Cable Length:
5.3-8m
Power:
Pneumatic
Color:
Yellow /Stainless Steel
Pressure:
Low Pressure
Fluid temperature limit:
<40 °C
Max ambient temperature:
<40 °C
Trans medium's PH:
4-10
Drive mode:
Motor
Impeller Structure:
Semi-open impeller
Motor:
100% Copper Wire
Warranty:
2 Years
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month Submersible Water Pump
Packaging & Delivery
Packaging Details
cases,pallets or as per customers' requirements
Port
Tianjin,Qingdao
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 25 To be negotiated

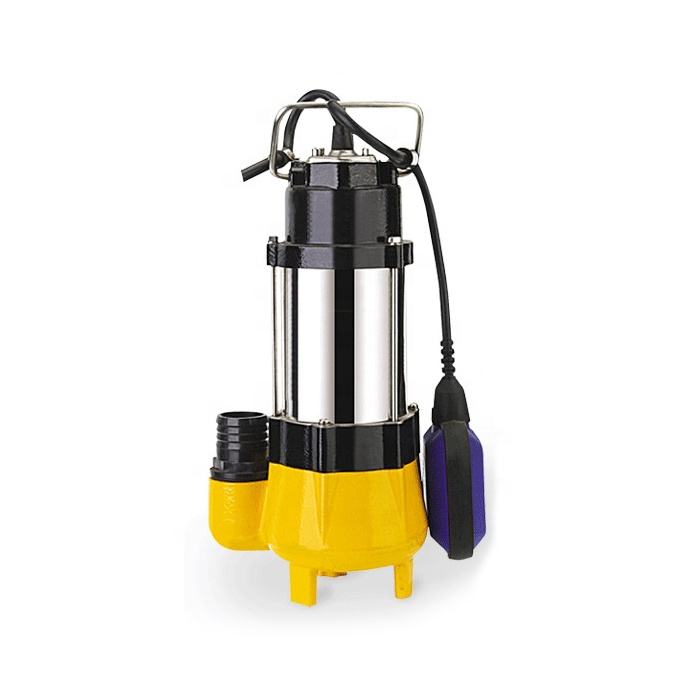

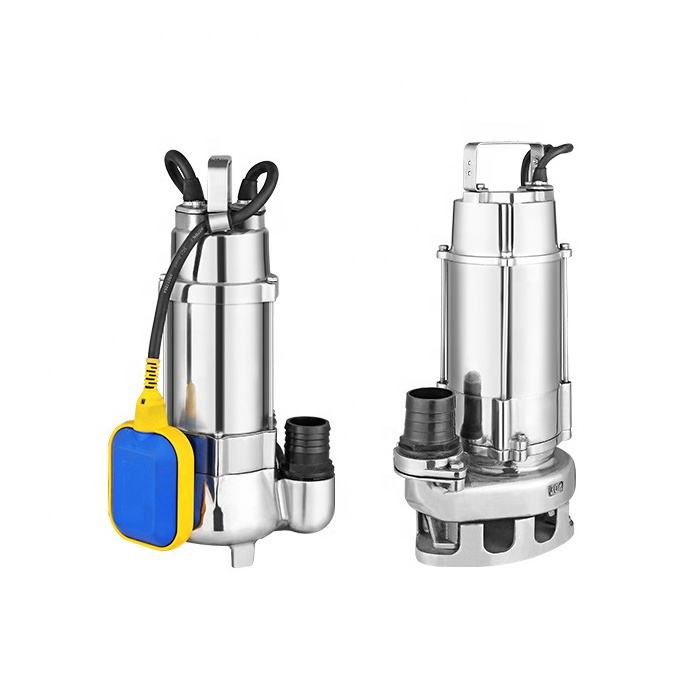

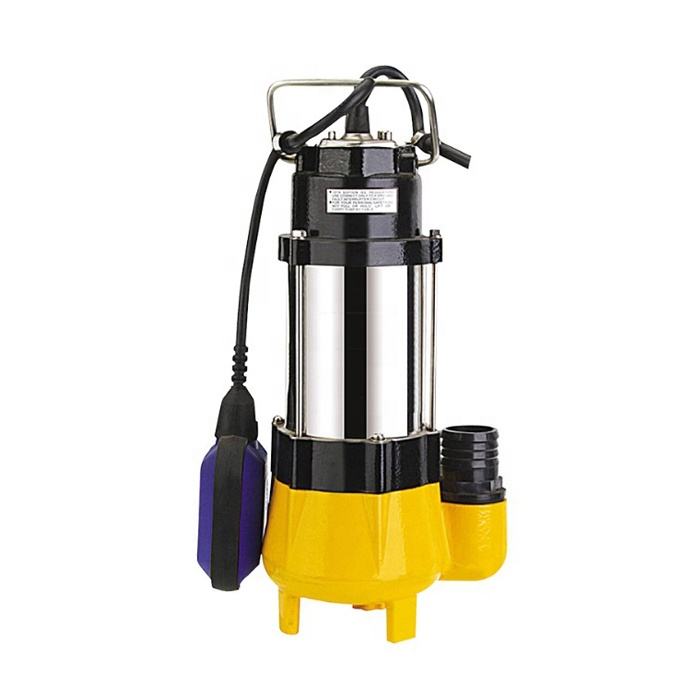

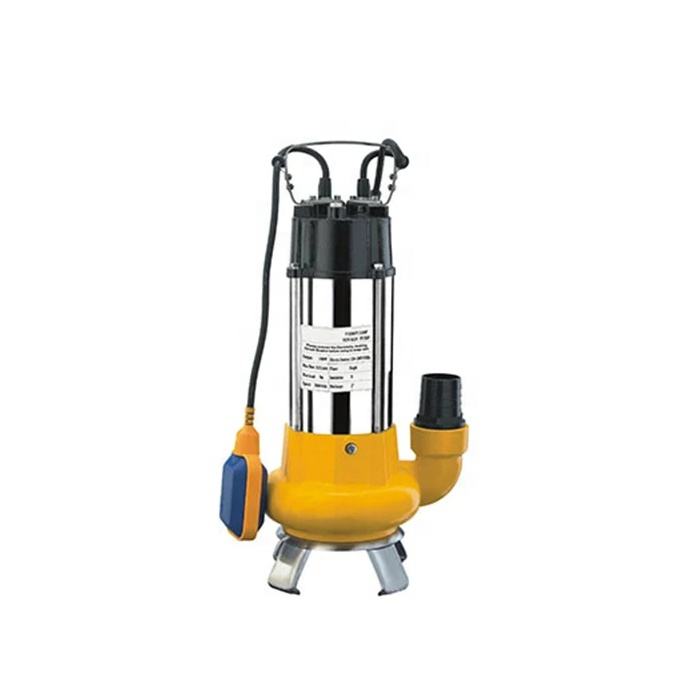

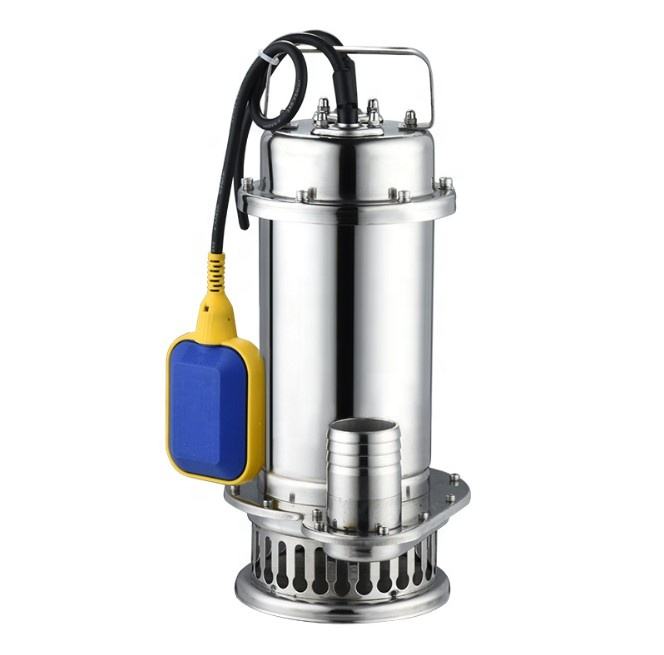

V1100F Submersible Sewage Cut Water Pump

Product Description



Product feature:

Water shortage protection to prevent burning machine, large flow, high head, automatic control without care, stainless steel material is not easy to rust, durable, easy to carry.



Usage:

Used for municipal sewage disposal system, municipal engineering, construction site sewage treatment, basement drainage, garden watering, farmland irrigation, etc.



Working condition:

1. The water pump diving depth shall not exceed 5m; 2. The temperature of the conveying medium shall not exceed 40℃; 3. The PH value of the conveying medium is between 4 and 10; 4. Float switch can be added according to user requirements.

Material: Stainless steel    Drive mode: motor

Impeller Structure: Semi-open impeller



Model



Outlet dia (mm)

Power (KW)

Rated Flow (m3/h)

Max Flow (m3/h)

Rated

Head(m)

Max Head (m)

Cable

V180

WQ5-5-0.18

25/32/40

0.18

5

8

5

7

5.3

V250

WQ5-5-0.25

25/32/40

0.25

5

9

5

7.5

5.3

V450

WQ5-7-0.45

40/50

0.45

5

12

7

8.5

6

V550

WQ5-10-0.55

40/50

0.55

5

12

10

12.5

6

V750

WQ10-10-0.75

40/50

0.75

10

18

10

10

6

WQ20-4-0.75

80

0.75

20

30

4

7

6

V1100

WQ16-5-1.1

40/50

1.1

16

20

5

9

6

V1500

WQ25-7-1.5

80

1.5

24

47

7

16

8

WQ6-22-1.5

40/50

1.5

6

16.2

22

24

8

V2200

WQ30-11-2.2

80

2.2

30

40

11

17

8

WQ35-10-2.2

102

2.2

35

50

10

17

8



Detailed Images



Our Services

Sample Room

Our Certificate

Company Information



FAQ

1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.

3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.

4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.

5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.



6. What's your terms of payment?
A: T/T, L/C , Alibaba Trade Assurance available, full protection for your orders.
