- Type:
-
Air & Vacuum Release Valves
- Place of Origin:
-
Shanxi, China
- Brand Name:
-
SOLID
- Model Number:
-
Air Release Valve
- Application:
-
General
- Temperature of Media:
-
Normal Temperature
- Power:
-
Manual
- Media:
-
Water
- Port Size:
-
DN25-DN200
- Structure:
-
Air Valve
- Color:
-
Blue
- Body material:
-
DI/GGG50
- Certificate:
-
ISO9001:2008 CE
- Connection:
-
Flange Ends
- Size:
-
DN25-DN200
- Standard:
-
BS
- Working pressure:
-
PN10/PN16
- Medium:
-
Water Oil Gas
- Usage:
-
Hydraulic Engineering
- Working Temperature:
-
Norminal Temperature
- CE Certified.
- Valid from 2018-06-11 until 2023-06-10
- Supply Ability:
- 1000 Set/Sets per Month Single Orifice Air Valve
- Packaging Details
- plywood case,wooden case
- Port
- Tianjin,Qingdao
- Lead Time :
-
Quantity(Pieces) 1 - 10 >10 Est. Time(days) 15 To be negotiated

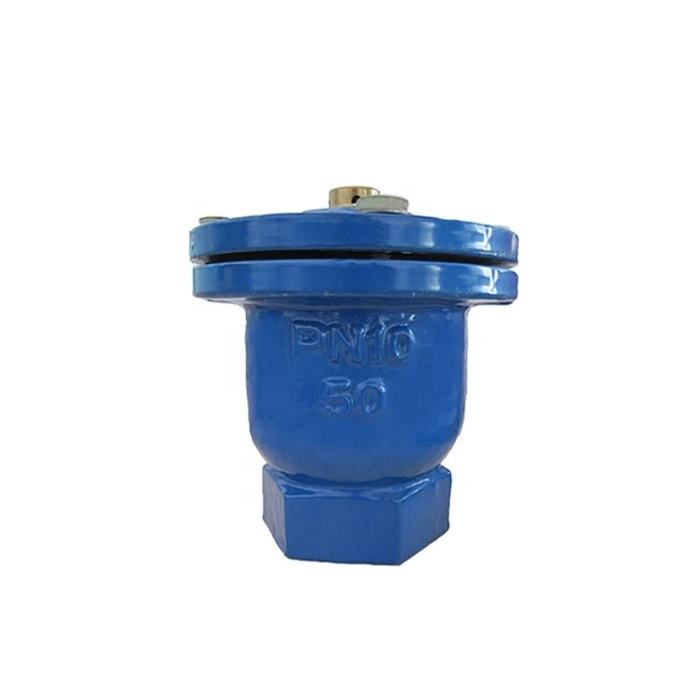

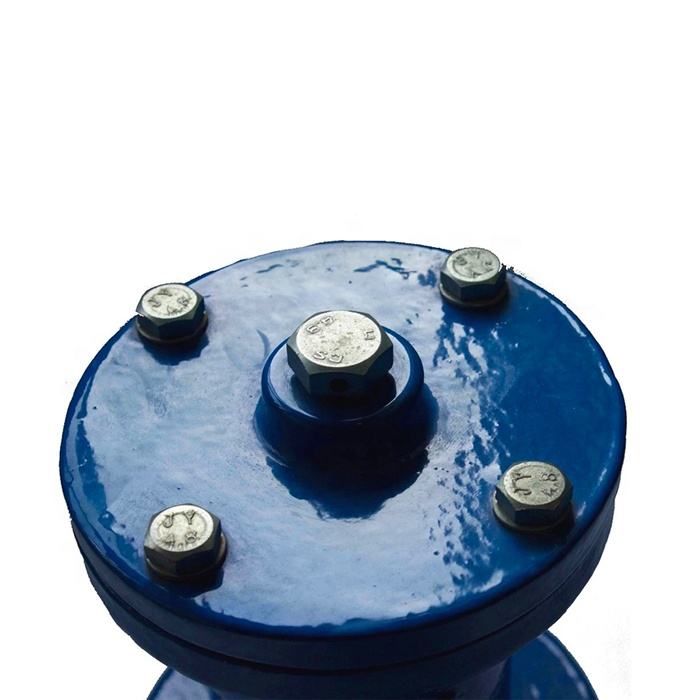

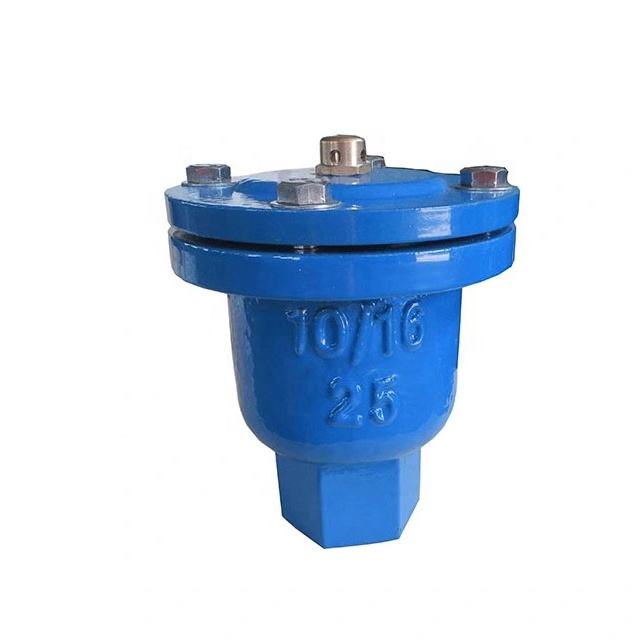

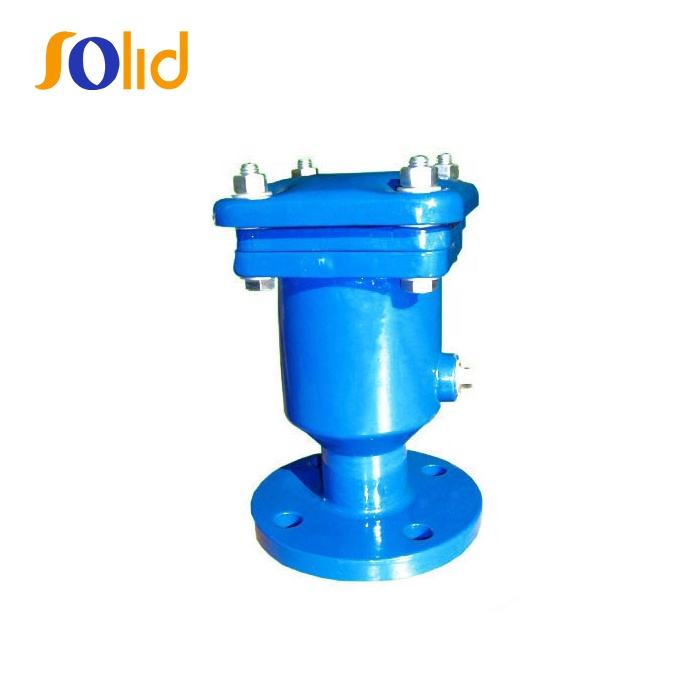

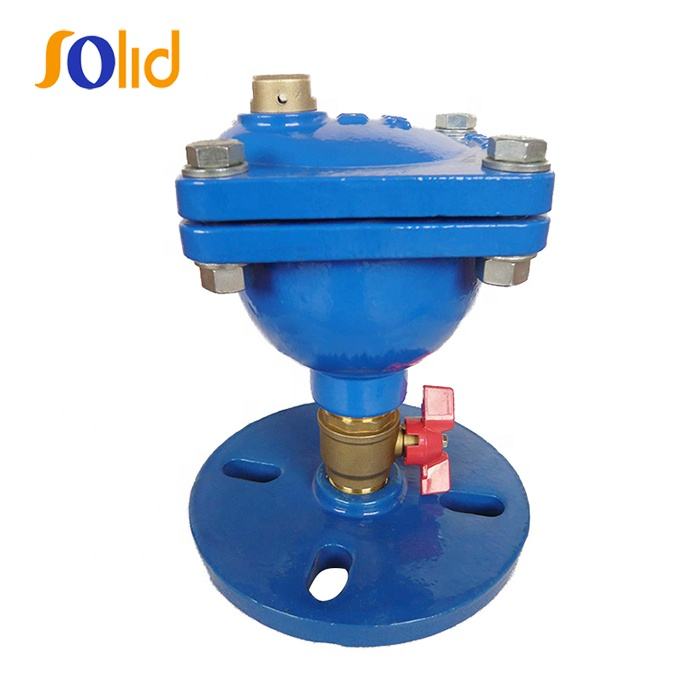

Ductile Iron Flange Single Orifice Ball Air Release Valve
This valve will effectively remove the air in pipeline and alleviate the resistance of the flow media.
Stainless steel floating ball provides long service life.
Automatically suction air when the pressure is beyond limited to protect the piping system.
| Nominal diameter(mm) | Dimension (mm) | ||||
| L | L1 | H | Z | d | |
| 25 | 280 | 176 | 330 | - | 115 |
| 32 | 280 | 176 | 330 | - | 135 |
| 50 | 360 | 208 | 475 | 4 | 160 |
| 65 | 360 | 208 | 475 | 4 | 175 |
| 80 | 400 | 244 | 552 | 8 | 195 |
| 100 | 465 | 275 | 623 | 8 | 215 |
| 150 | 537 | 332 | 686 | 8 | 230 |
| 200 | 537 | 332 | 686 | 8/12 | 245 |
Parts name and material:
| Parts name | Valve body | Gland | Float ball | lever rod | lever | chock plug |
| Material | ductile iron | ductile iron | stainless steel | stainless stee | aluminium bronze | |
